24V 50W Ceramic Cartridge Heater Tube and Thermistor Cartridge
HT-NTC100KUSD $10.99
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!

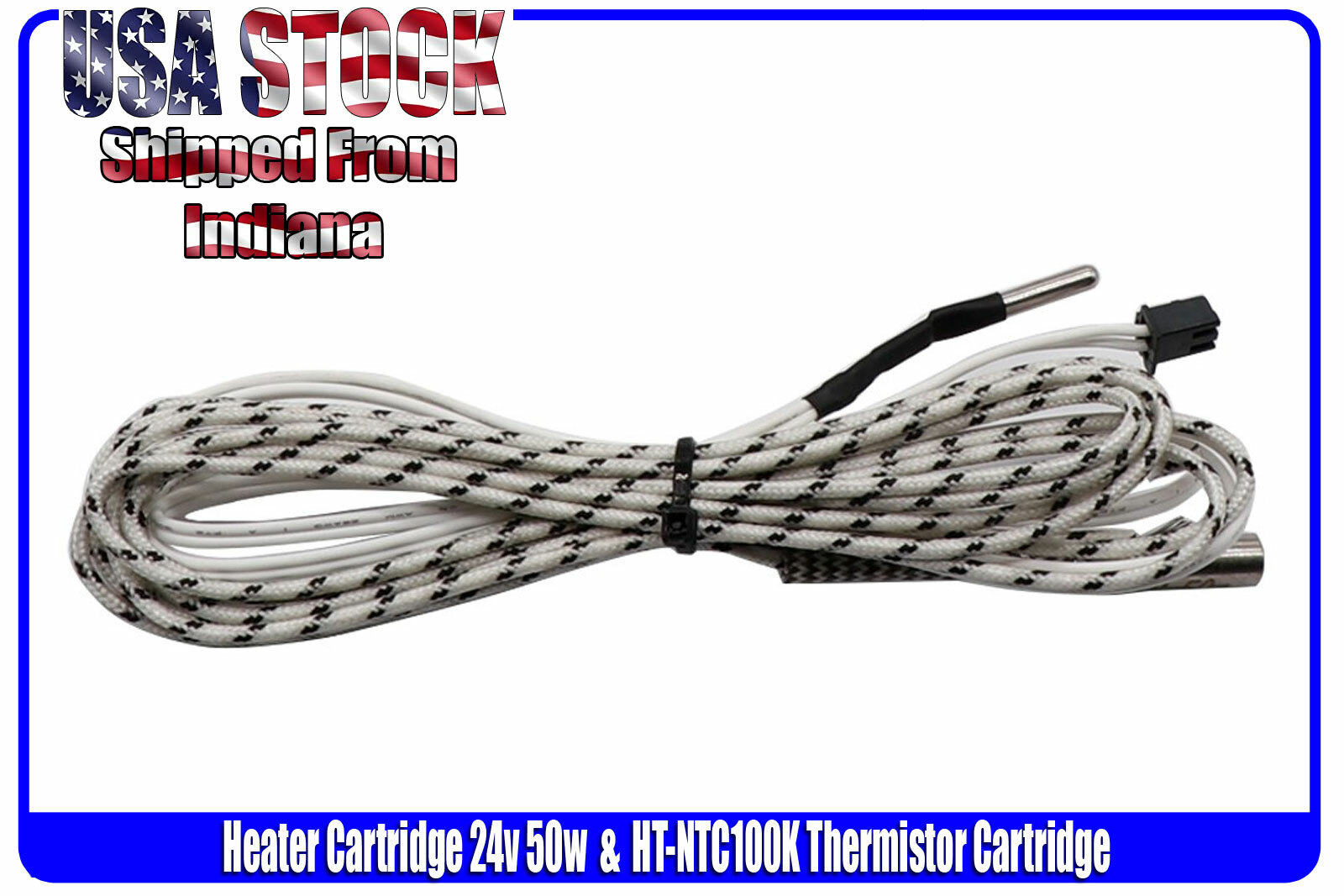

24V 50W Ceramic Cartridge Heater Tube and Thermistor Cartridge HT-NTC100K
Product features24v 50w Cartridge Heater
High quality ceramic heater cartridge for 3D printers Cartridge heaters consist of a cylindrical stainless steel tube and thus are corrosion resistant. The heating wire inside is wound onto a ceramic core. The number of coils varies depending on the power, and provide a uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures.Specification:
Voltage: 12V Power: 50W
Cartridge material: 304 Stainless Steel
Cartridge Size: 6x20mm
Heating temperature: up to 350 degree
Line length: 39inch /1M
Line thick: 0.5 mm2 (The cross section of the copper wire inside the heater is 0.5mm2)
HT-NTC100K Thermistor Cartridge
The temperature measurement of the upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and result in temperature fluctuation that can affect the printing quality. The improvements compared to the other temperature resistance in the market. 1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement to resistance package temperature measurement. Temperature measurement head cylinder diameter 3mm, length 15mm, can be used with the heating block that support the thermocouple. 2. The temperature measurement range is increased from -50 ℃~ +250℃ to -50 ℃ ~ +320 ℃. It helps a lot to print high-temperature filament, can replace the original K-type thermocouple temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended. 3. The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement. 4. HT-NTC100K thermistor adopts white high-temperature cord, can bear higher temperature. And for customers' convenience, the wires adopts line connection, the customer can tear the wires depends on their application. The high temperature line is double thicker than others in the market, not easy to break off. 5. Supports the customization of different specifications, including the temperature head cylinder size, length of the wires (MOQ is 100 sets). 6. Can be used with the new version of the heater (the new heater can heat up to 350 degrees).
Single-end heating tube use instructions:
1.The effective heating part of the single-end heating tube must be kept dry.
2.The electrical joint of the single-ended heating pipe should be placed outside the insulation layer and the heating chamber. The working voltage should not exceed 10% of its rated value, and the casing should be effectively grounded.
3.The working environment of the electric heating element, the temperature is not more than 95 degrees, no explosive, corrosive gas.
4.The electric heating element should be stored in a dry place and should not be damp.
Package Includes:
1x Heater Cartridge
1x Thermistor Cartridge
Product features24v 50w Cartridge Heater
High quality ceramic heater cartridge for 3D printers Cartridge heaters consist of a cylindrical stainless steel tube and thus are corrosion resistant. The heating wire inside is wound onto a ceramic core. The number of coils varies depending on the power, and provide a uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures.Specification:
Voltage: 12V Power: 50W
Cartridge material: 304 Stainless Steel
Cartridge Size: 6x20mm
Heating temperature: up to 350 degree
Line length: 39inch /1M
Line thick: 0.5 mm2 (The cross section of the copper wire inside the heater is 0.5mm2)
HT-NTC100K Thermistor Cartridge
The temperature measurement of the upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and result in temperature fluctuation that can affect the printing quality. The improvements compared to the other temperature resistance in the market. 1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement to resistance package temperature measurement. Temperature measurement head cylinder diameter 3mm, length 15mm, can be used with the heating block that support the thermocouple. 2. The temperature measurement range is increased from -50 ℃~ +250℃ to -50 ℃ ~ +320 ℃. It helps a lot to print high-temperature filament, can replace the original K-type thermocouple temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended. 3. The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement. 4. HT-NTC100K thermistor adopts white high-temperature cord, can bear higher temperature. And for customers' convenience, the wires adopts line connection, the customer can tear the wires depends on their application. The high temperature line is double thicker than others in the market, not easy to break off. 5. Supports the customization of different specifications, including the temperature head cylinder size, length of the wires (MOQ is 100 sets). 6. Can be used with the new version of the heater (the new heater can heat up to 350 degrees).
Single-end heating tube use instructions:
1.The effective heating part of the single-end heating tube must be kept dry.
2.The electrical joint of the single-ended heating pipe should be placed outside the insulation layer and the heating chamber. The working voltage should not exceed 10% of its rated value, and the casing should be effectively grounded.
3.The working environment of the electric heating element, the temperature is not more than 95 degrees, no explosive, corrosive gas.
4.The electric heating element should be stored in a dry place and should not be damp.
Package Includes:
1x Heater Cartridge
1x Thermistor Cartridge
